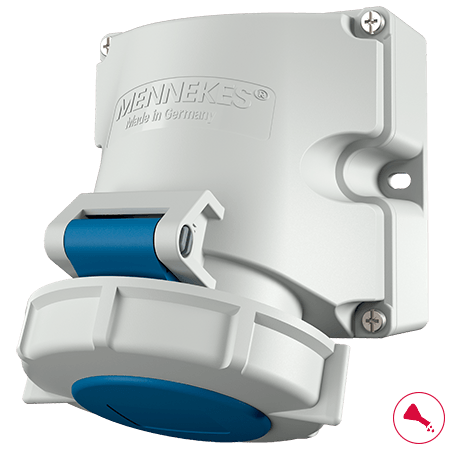

Wall mounted receptacle with TwinCONTACT 9141

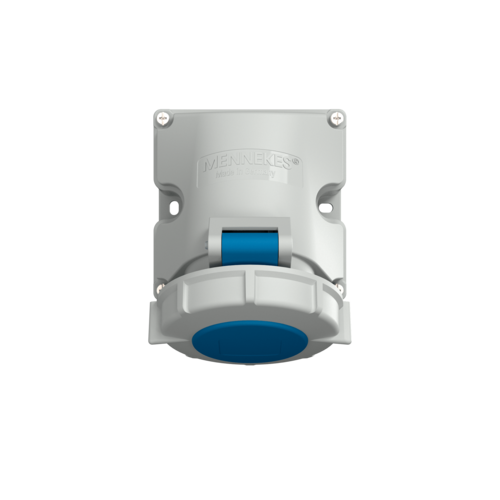

Wall mounted receptacle with TwinCONTACT 9141 - Image 2

Wall mounted receptacle with TwinCONTACT 9141

Category:

Description

Wall mounted receptacle with TwinCONTACT 9141

The waterproof and dustproof CEE wall mounted receptacle for use in harsh environmental conditions.

Ampere16 A 32 A
Poles
Voltage
Clock position
  • screwless spring terminals
  • highly resistant to chemicals
  • suitable for through wiring
  • with 2 external fixing points
  • receptacles are designed for adding an auxiliary contact switch
  • enclosure base can be turned 180°
  • Part no.9141
  • EAN4015394280330
  • Std. Pack. 5



Please give the new list a name

Technical specifications

Wall mounted receptacle with TwinCONTACT 9141

Ampere 16 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screwless – TwinCONTACT
Contact standard
Protection type IP 67
Weight 378 g
Declaration of Conformity EAC
CQC
