Description

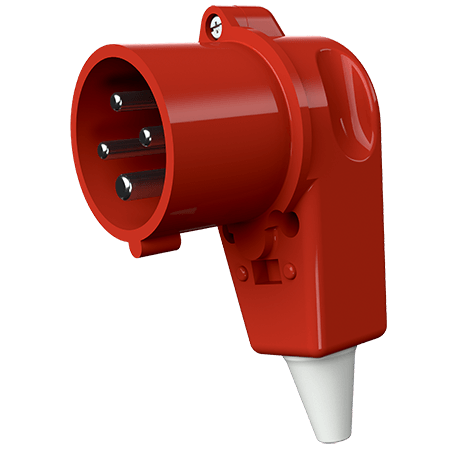

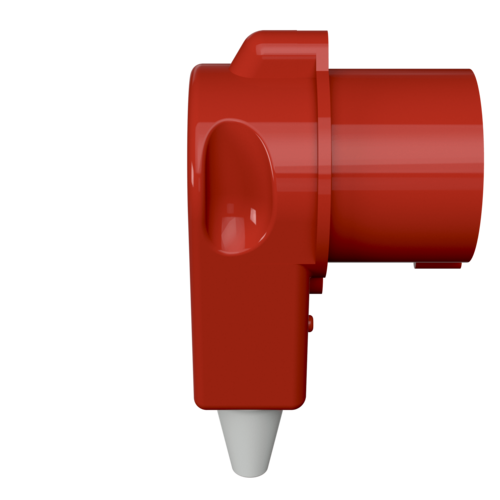

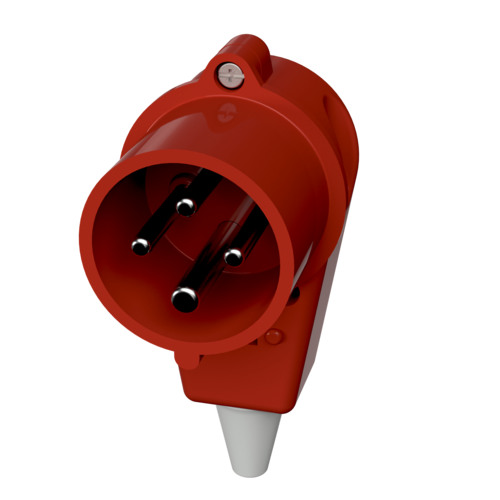

Angled plug 315
Ampere16 A
Poles
Voltage
Clock position
- screw terminals
- nickel plated contacts
- with grommet
- especially suited for use with receptacles of the Cepex range
Technical specifications
Angled plug 315
| Ampere | 16 A |
|---|---|
| Poles | 4 p |
| Voltage | 400 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact | nickel plated contacts |
| Protection type | IP 44 |
| Weight | 138 g |
| Declaration of Conformity | EAC CQC |
