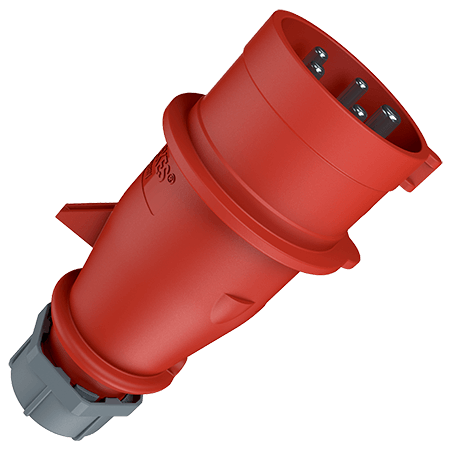

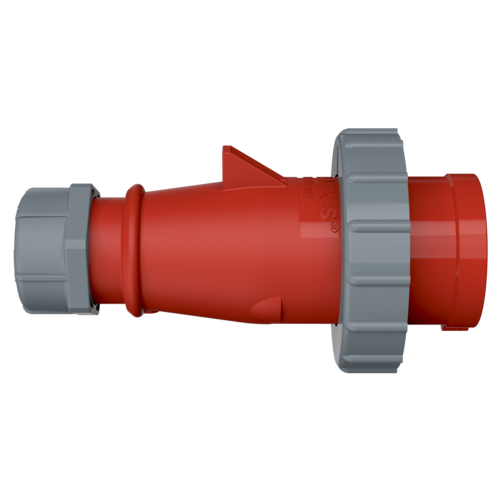

32A 5PIN PLUG TYPE 21428

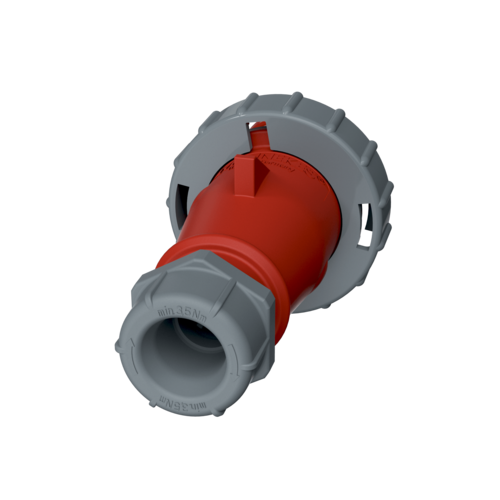

32A 5PIN PLUG TYPE 21428 - Image 2

32A 5PIN PLUG TYPE 21428

Plug AM-TOP®

Part no. 21428

Protection type IP 44
Ampere 32 A
Poles 5 п
Voltage 400 B
Connection technology Винтовое соединение
Category:

Description

Plug AM-TOP® 21428

Ampere16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.21428
  • EAN4015394040569
  • Std. Pack. 10

Technical specifications

Plug AM-TOP® 21428

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP 44
Weight 280 g
Declaration of Conformity VDE
EAC
CQC
